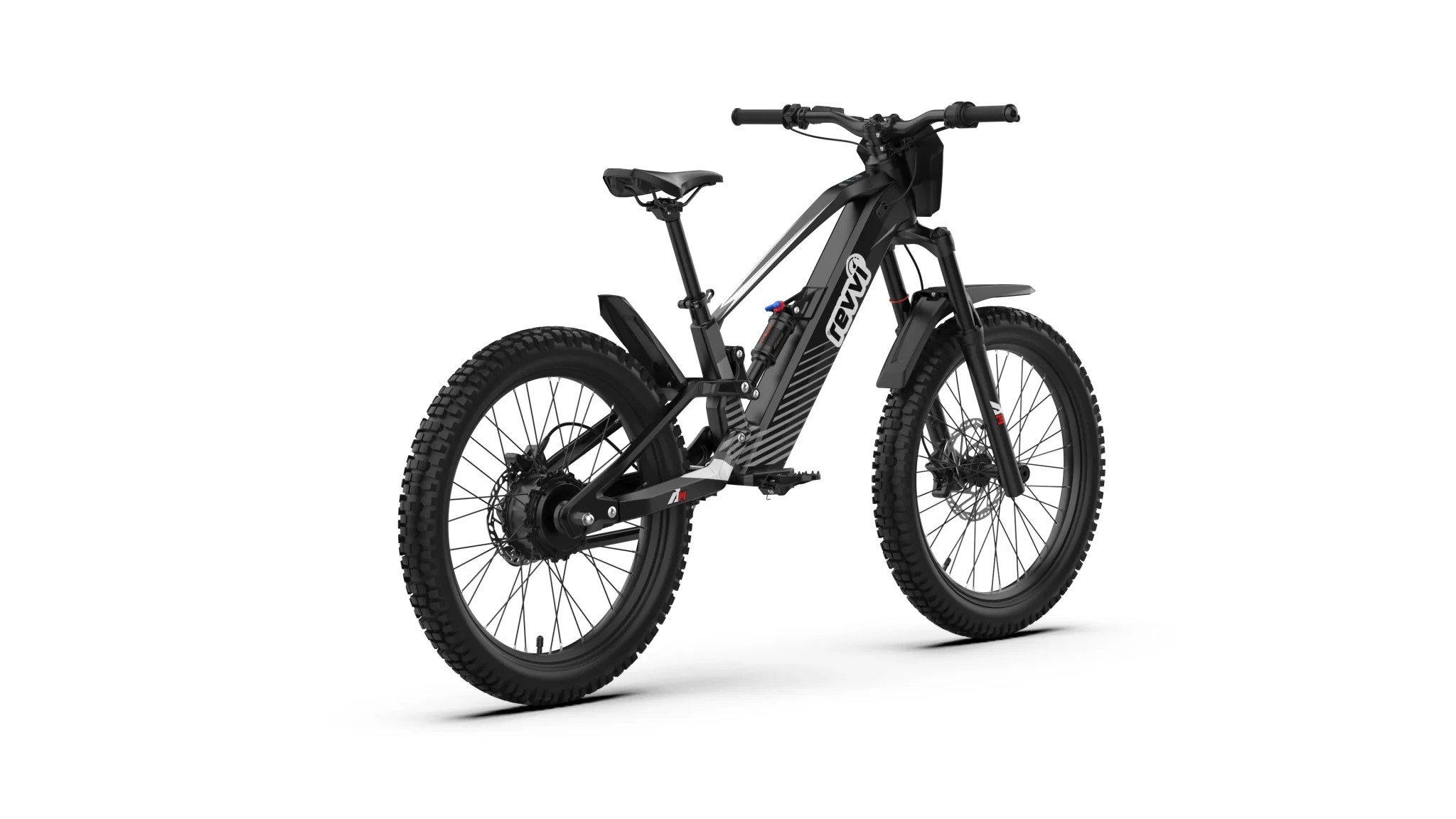

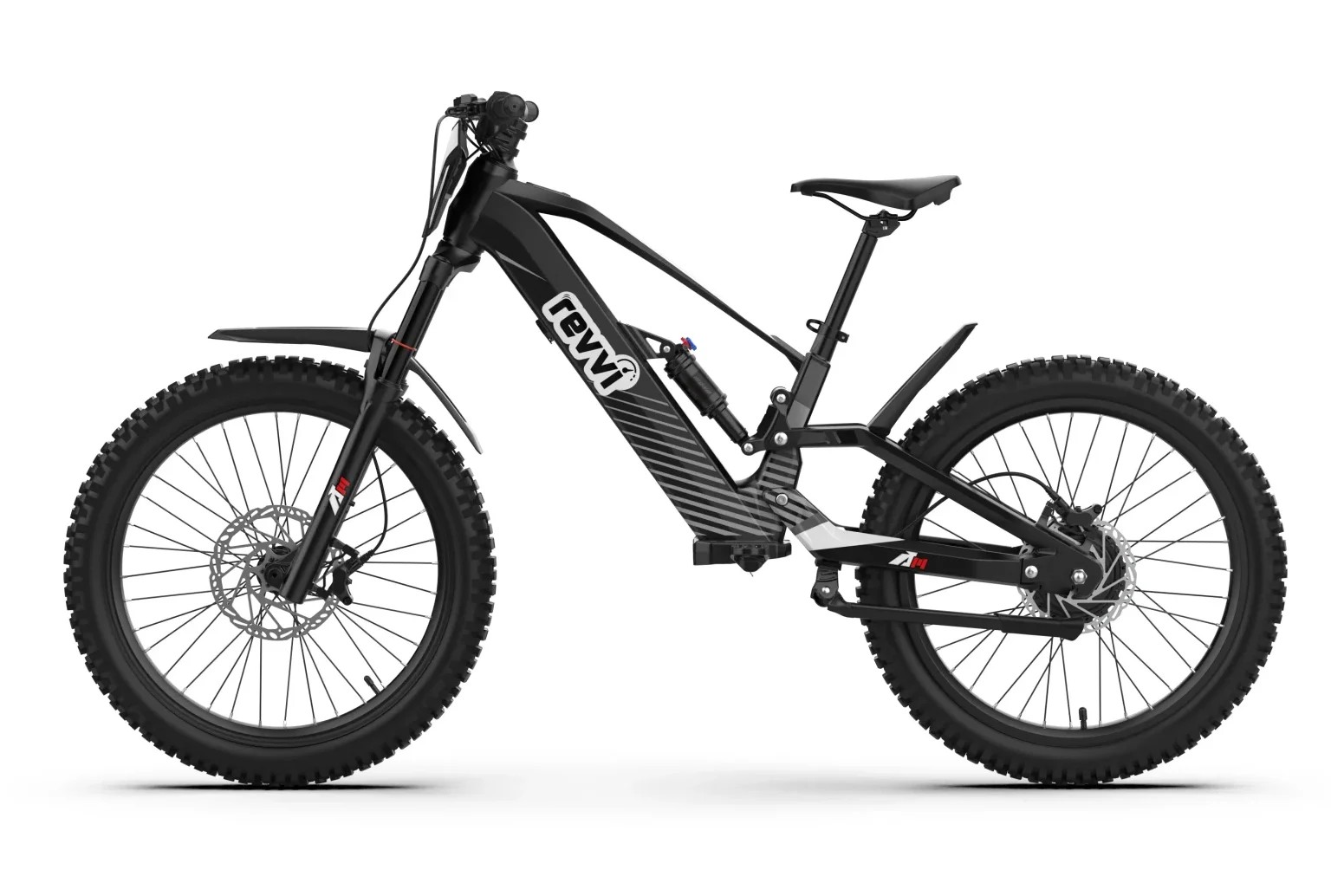

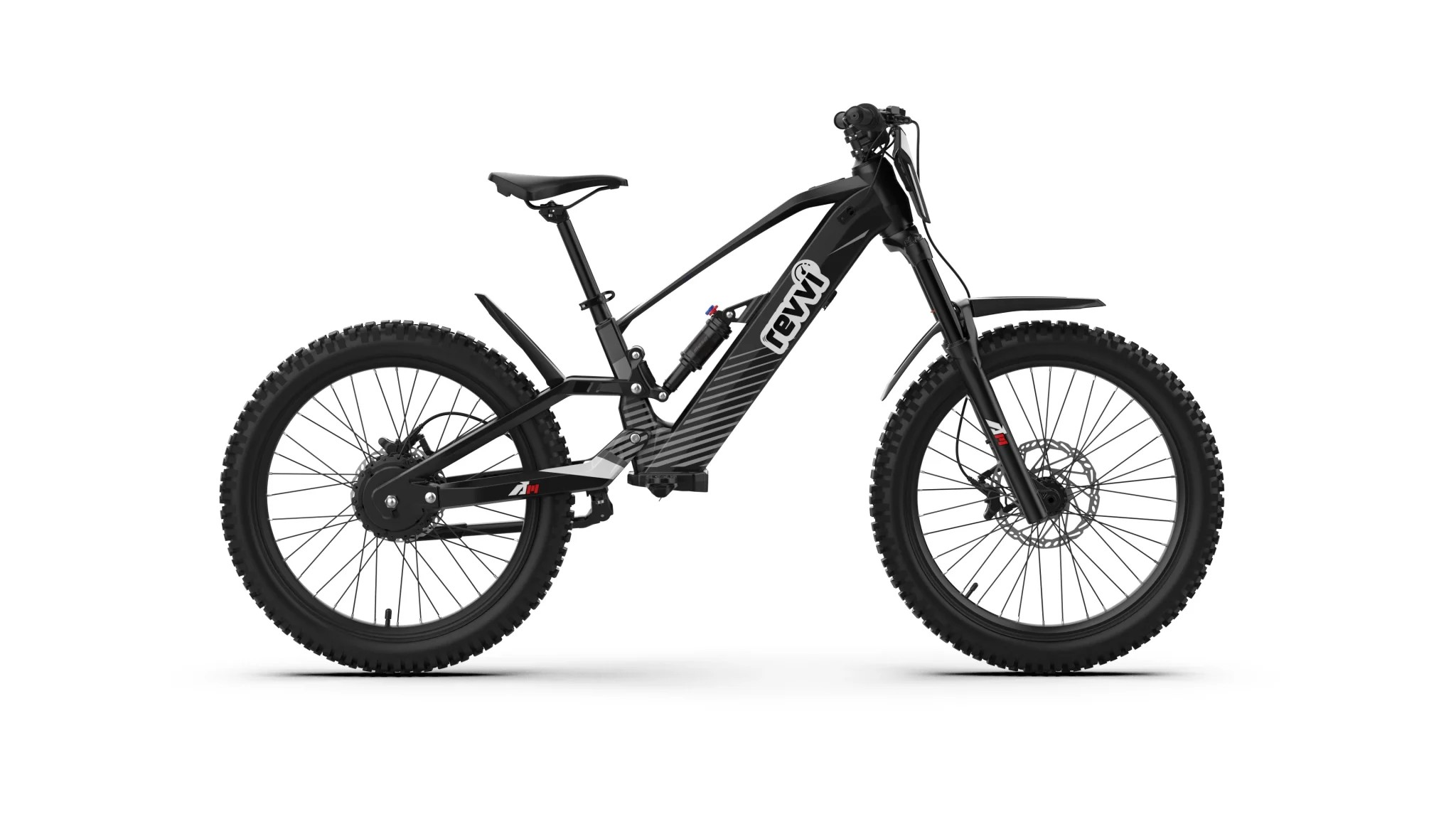

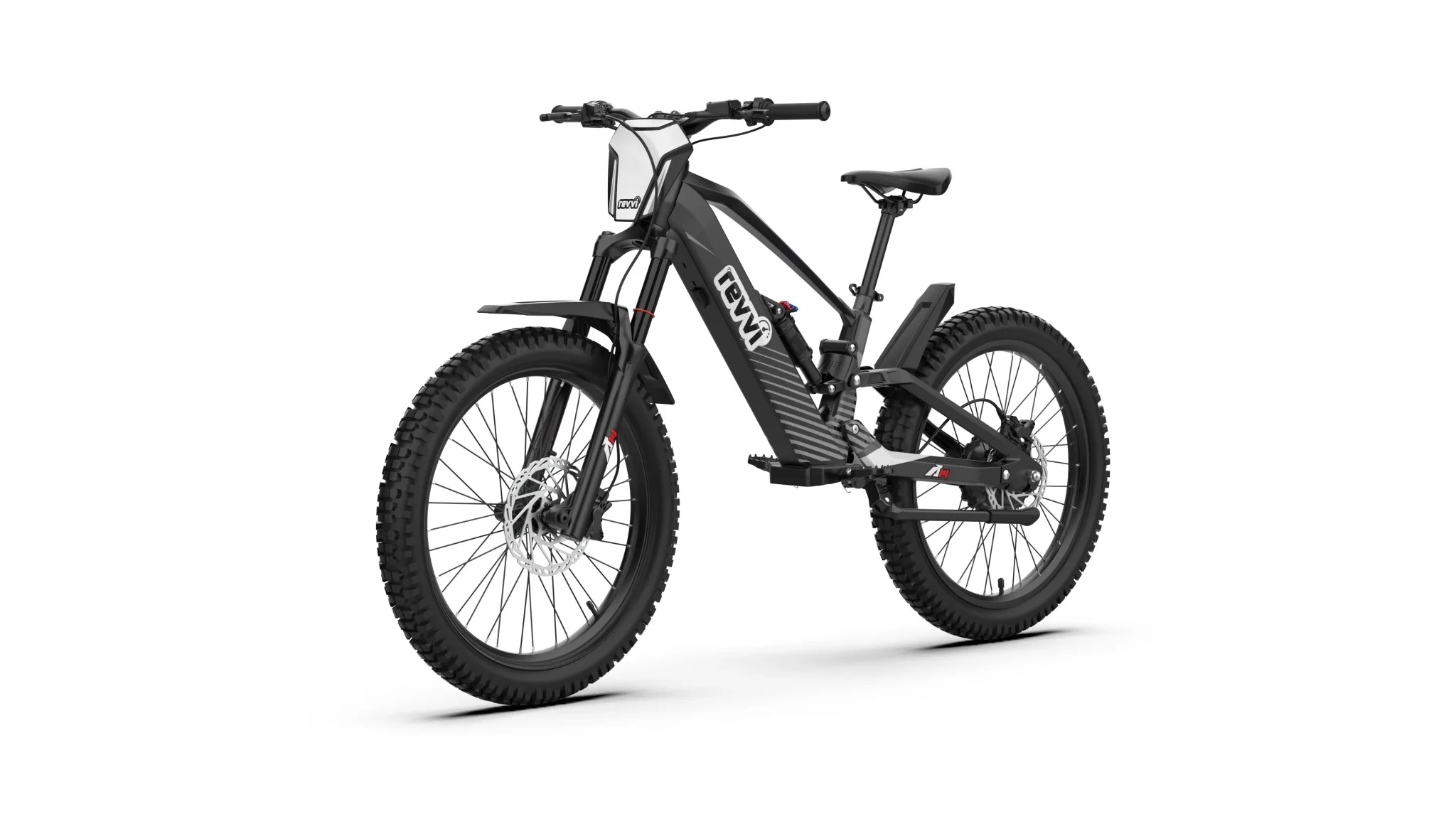

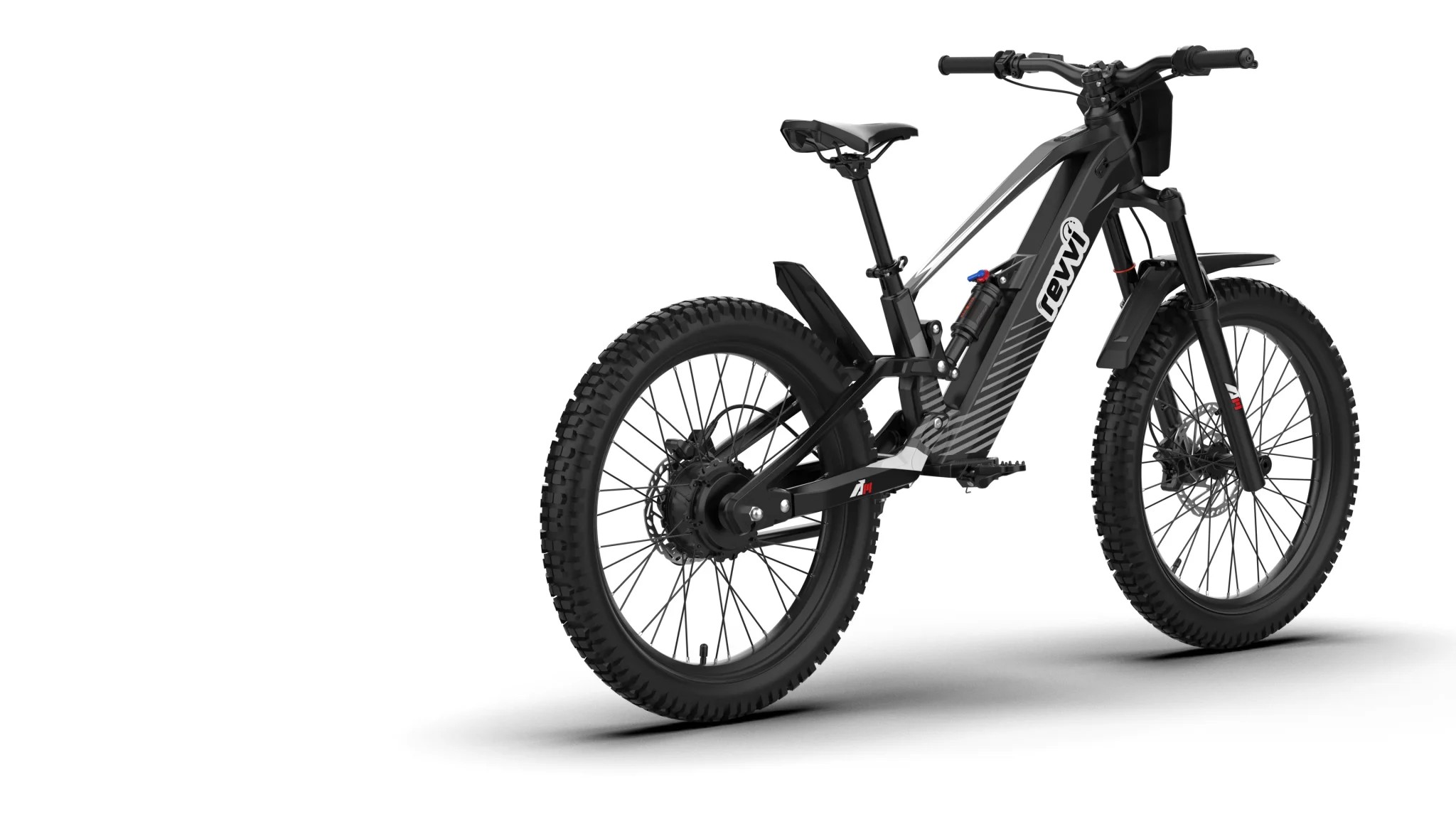

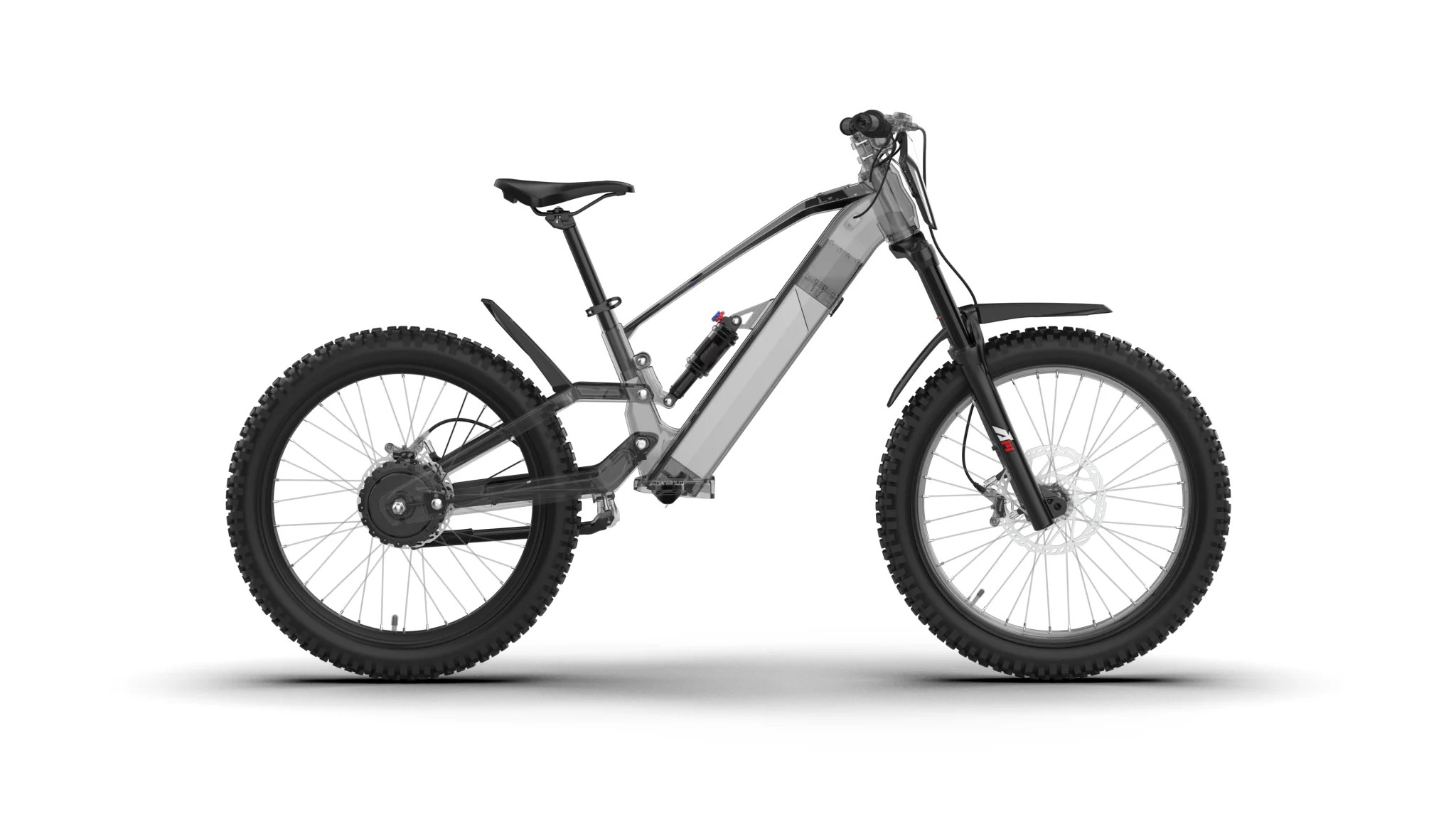

Revvi 24″ Electric Bike

£1,599

Make an Enquiry Part Exchange Enquiry

Model Description


Lightweight Design

Only 30.6kg – built stronger for bigger riders while maintaining balance and control.

Triple Speed Modes

15.5 / 22 / 30 MPH (3 speed settings)

Tyres

Proper pneumatic tyres (24″ aggressive knobbly) for grip on all surfaces.

Brushless Motor

High efficiency 48V 1000W brushless motor with peak 1500W power for maximum performance.

Model Specification


  • Engine

    Motor

    Motor Rated Power - 48V 1000w brushless hub motor Motor Peak power: 48V 1500w brushless hub motor 132 N·m Torque

    Battery

    48V 15AH Lithium ion

    Transmission

    Hub Motor

  • Performance

    Battery Range

    Slow speed: Approx 1h 20m constant use Medium speed: Approx 50m constant use Fast speed: Approx 30m constant use (Please note battery range will vary depending on the speed setting, rider weight and riding conditions.)

    Battery Charge Time

    5hrs

    Max Speed

    15.5 / 22 / 30 MPH (3 speed settings)

  • Frame

    Frame

    Aluminium alloy+Forged swing arm with linkage

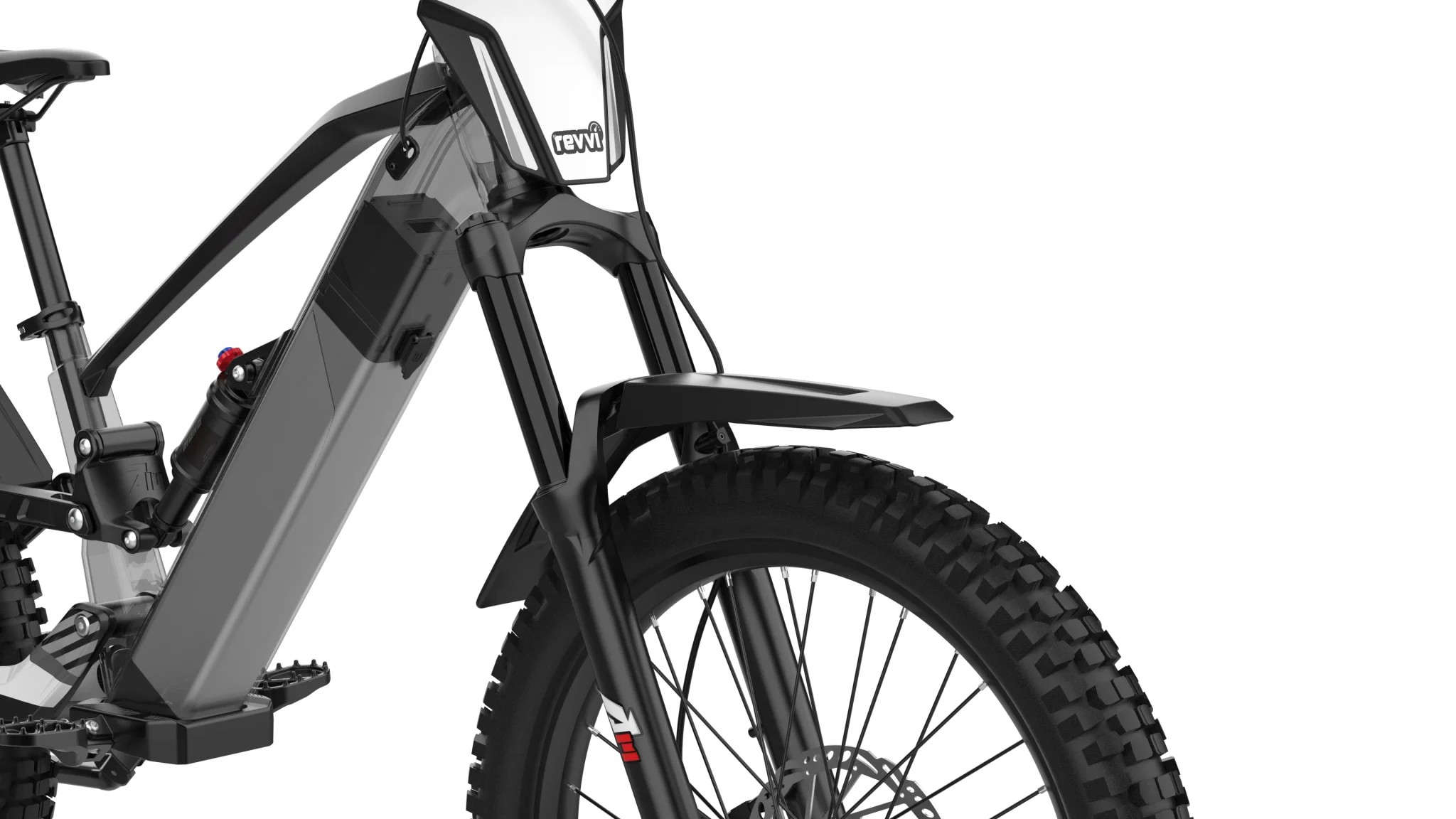

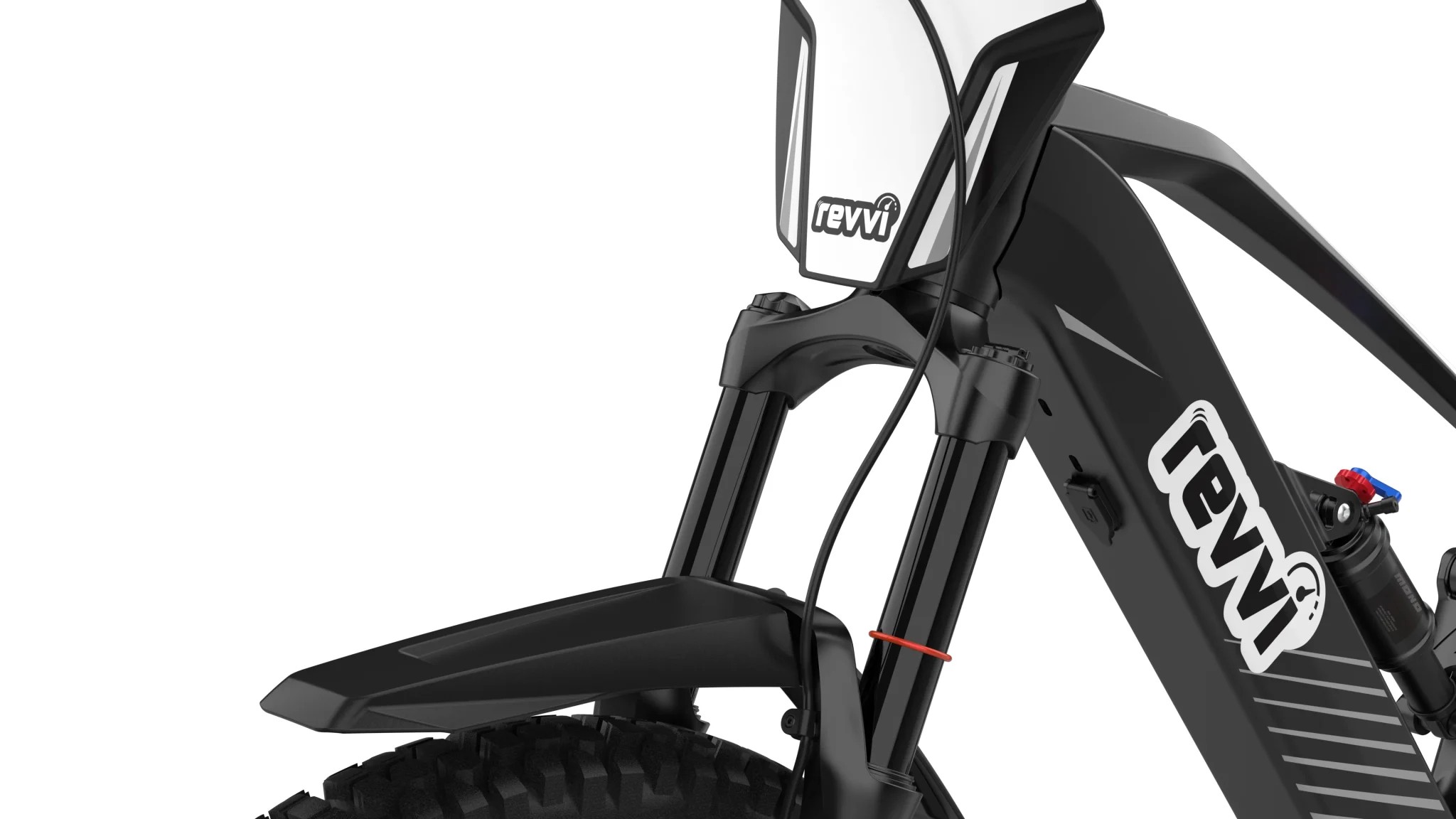

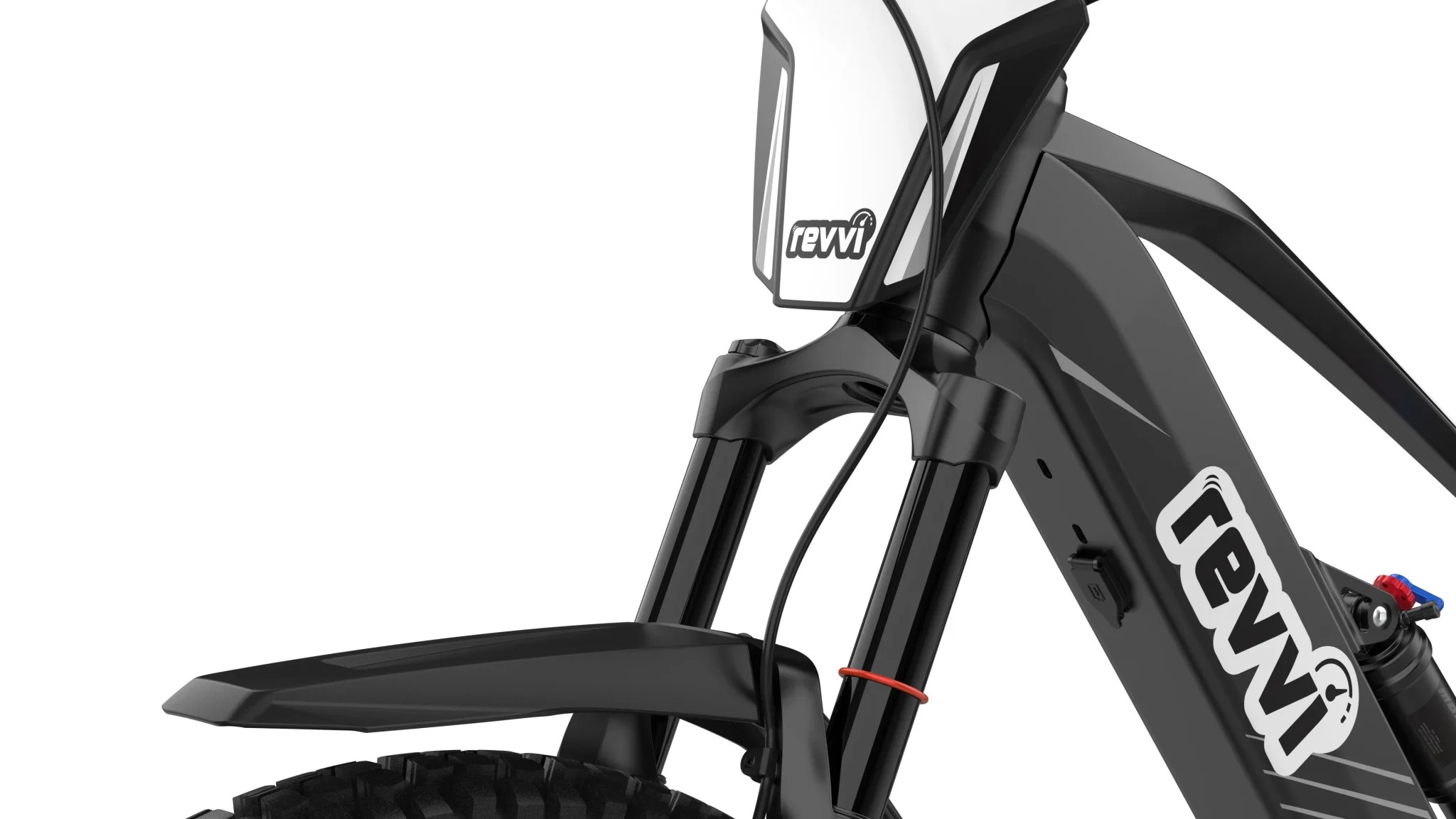

    Front Forks / Travel

    RST Compression / Rebound Suspension forks – 140mm travel

    Rear Shock / Travel

    RST Air Shock Compression / Rebound

    Handle Bar

    Alloy

    Stem

    Alloy

    Grip

    Rubber

    Fork

    Aggressive knobbly 24"

  • Brakes

    Brake

    Front and rear hydraulic disc brakes

  • Wheels

    Tire

    Aggressive knobbly 24"

    Rim

    Spoked rim 24"

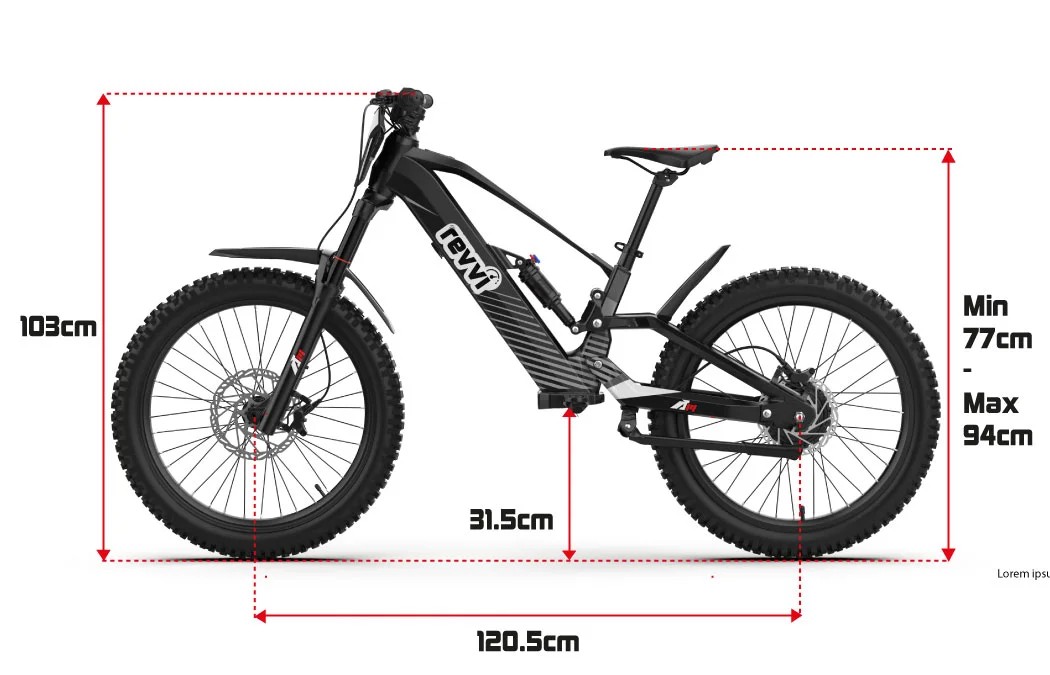

  • Dimensions

    Box size

    151*26*85cm

    Net Weight

    30kg

    Maximum Permitted Rider Weight

    75kg
